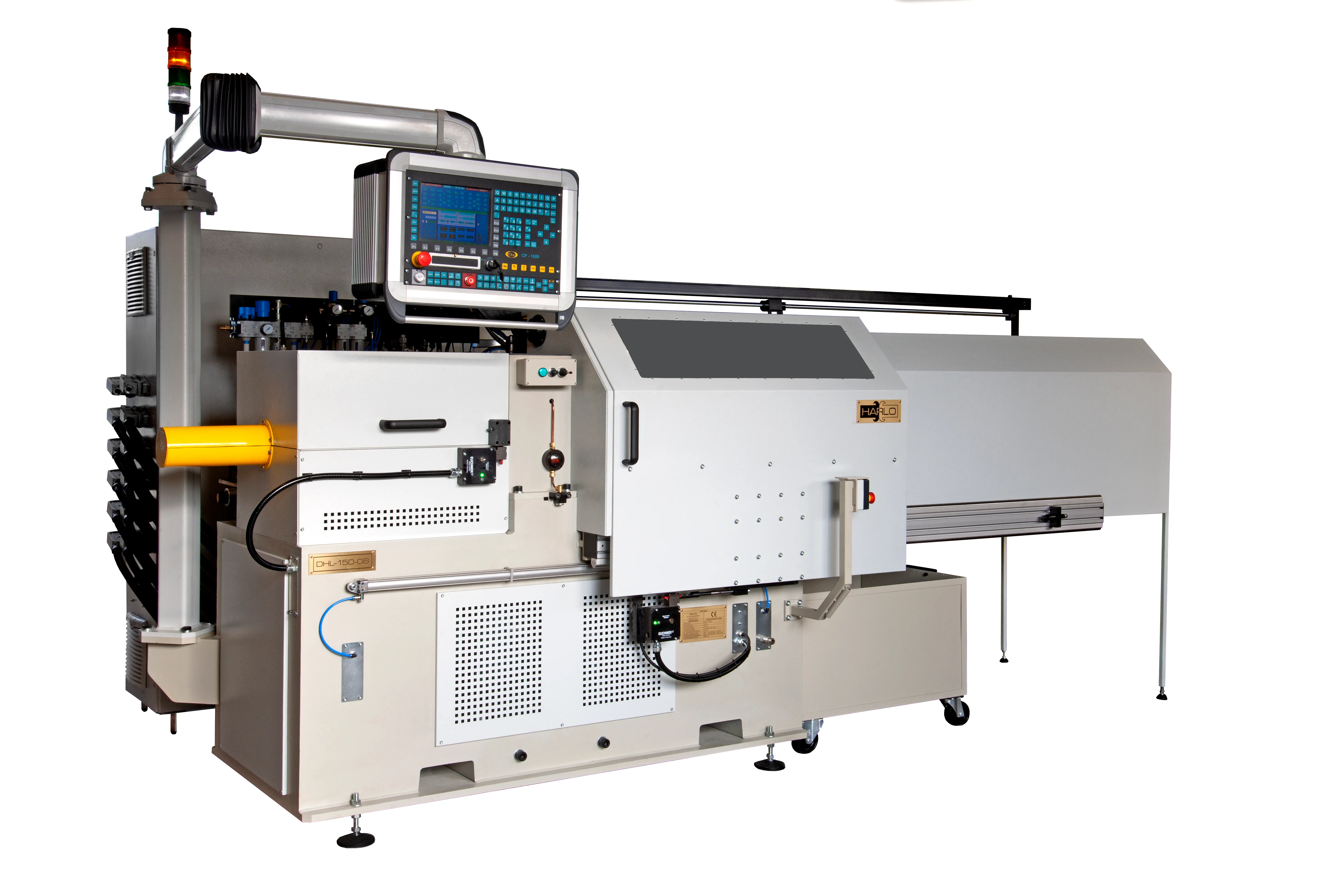

DHL-150
Continuous drive friction welding machine for parts with small to medium cross-sections. Welding force continuously adjustable from 0.35 to 150 kN.
- Axial force
- 0.35–150 kN
- Weldable diameter
- 5–35 mm (20–962 mm²)
- Cross-section
- 19–1000 mm²
- Max. workpiece length
- 1200 mm (optionally extendable to 5000 mm)
- Main drive
- 22 kW · frequency-controlled
Equipment
| Flash removal | Standard, in automatic cycle |
|---|---|
| Angular positioning | Optional · ±0.5° |
| In-process parameter monitoring | Standard |
| Robotic loading | Optional |
Request a quote
Send us the part drawing, the material combination and the planned quantity. We assess whether the part is suitable for friction welding and propose how to produce it: by contract friction welding or on a machine adapted to the task. In every case, we validate the process by trial welding.
